A roll cage gusset is a small reinforcing component added to a roll cage, typically at the joints where tubes meet. Its primary purpose is to strengthen the connection between intersecting tubes, distribute stress more evenly, and reduce flexing or movement in the structure during a crash or extreme forces found in Motorsport and Off-Roading

Common Types of Roll Cage Gussets:

1. Flat Gussets: Triangular or rectangular metal plates welded into the corners of tube intersections.
2. Tube Gussets: Short sections of tube welded diagonally between intersecting bars.
3. Dimple Die Gussets: Flat gussets with flared holes (dimples) pressed into them, which add rigidity and reduce weight.

Why They’re Important:

Increases safety for the driver in the event of a rollover or collision.

Improves structural integrity in high-stress areas.

Prevents tube deformation or cracking under load.

	Product Name	Approx Dimension of Material	Tube Size Suitability
	Closed Gusset 30°	200mm x 103mm x 1mmthk	38.1mm / 1.500″ 40mm 44.45mm / 1.750″ 50.8mm / 2.000″

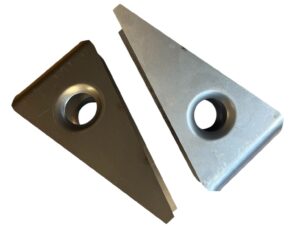

	Open Gusset 30°	200mm x 113mm x 1mmthk	38.1mm / 1.500″ 40mm 44.45mm / 1.750″ 50.8mm / 2.000″

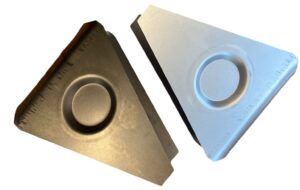

	Closed Gusset 45°	140mm x 106mm x 1mmthk	38.1mm / 1.500″ 40mm 44.45mm / 1.750″ 50.8mm / 2.000″
	Open Gussets 45°	136mm x 107mm x 1mmthk	38.1mm / 1.500″ 40mm 44.45mm / 1.750″ 50.8mm / 2.000″
	Closed Gusset 60°	113mm x 114mm x 1mmthk	38.1mm / 1.500″ 40mm 44.45mm / 1.750″ 50.8mm / 2.000″
	Open Gussets 60°	113mm x 114mm x 1mmthk	38.1mm / 1.500″ 40mm 44.45mm / 1.750″ 50.8mm / 2.000″
	Open Gusset 90°	97mm x 116mm x 1mmthk	38.1mm / 1.500″ 40mm 44.45mm / 1.750″ 50.8mm / 2.000″

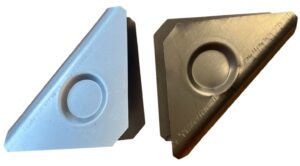

	Closed Gusset 90°	95mm x 116mm x 1mmthk	38.1mm / 1.500″ 40mm 44.45mm / 1.750″ 50.8mm / 2.000″
	Gusset A-Support	60mm x 123mm x 1mmthk	38.1mm / 1.500″ 40mm 44.45mm / 1.750″

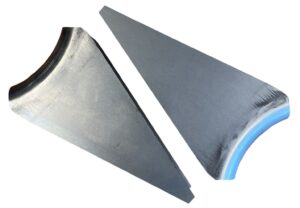

	Curved Gusset Closed 30°	205mm x 102mm x 1mmthk	38.1mm / 1.500″ 40mm 44.45mm / 1.750″ 50.8mm / 2.000″
	Curved Gusset Closed 45°	114mm x 105mm x 1mmthk	38.1mm / 1.500″ 40mm 44.45mm / 1.750″ 50.8mm / 2.000″
	Curved Gusset Closed 60°	135mm x 138mm x 1mmthk	38.1mm / 1.500″ 40mm 44.45mm / 1.750″ 50.8mm / 2.000″
	Curved Gusset Closed 90°	100mm x 155mm x 1mmthk	38.1mm / 1.500″ 40mm 44.45mm / 1.750″ 50.8mm / 2.000″

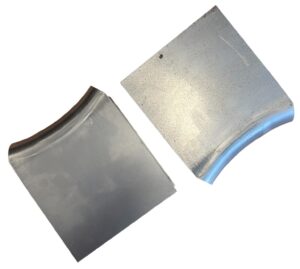

	Curved Gusset Large Closed	116mm x 114mm x 1mmthk	38.1mm / 1.500″ 40mm 44.45mm / 1.750″ 50.8mm / 2.000″
